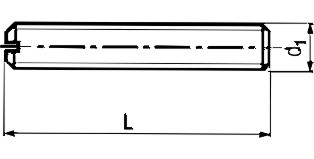

Stainless Steel Slotted Set Screw DIN 551

Stainless Steel Slotted Set
Screw DIN 551

d₁	n min.	t min.	Lengths (mm)
		Bare	Zinc
		S034	S035
M1	0.2	0.4	2-6
M1.2	0.2	0.4	2-6
M1.4	0.2	0.48	2-8
M1.6	0.25	0.56	2-10
M2	0.25	0.64	2-12
M2.5	0.4	0.72	2-12
M3	0.4	0.8	3-40
M3.5	0.5	0.96	4-12
M4	0.6	1.12	3-60
M5	0.8	1.28	4-80
M6	1	1.6	4-100
M8	1.2	2	6-100
M10	1.6	2.4	6-100
M12	2	2.8	8-100
M16	2.5	4	16-60

d	e	k	s	Lengths (mm)
M6	11.05	4	10	16-50
M8	14.38	5.3	13	16-50
M10	18.9	6.4	17/16	20-50

Related words : Din 125 Washer, Din 125, Metric Screw, Din 9021, Iso 7092, Iso 7093, Din 6915, Din 935, Din 7989, Metric Brass Machine Screws, Screws And Bolts, Metric Screws, Miniature Screws, Screw Post, Socket Screws, Stainless Steel Screws, Socket Screw, Socket Head Cap Screw, Acme Screws, Brass Screws

Please contact us for all your needs of

Stainless Steel Slotted Set Screw DIN 551

at best prices from india. We are the biggest indian manufacturers exporters of

Stainless Steel Slotted Set Screw DIN 551
