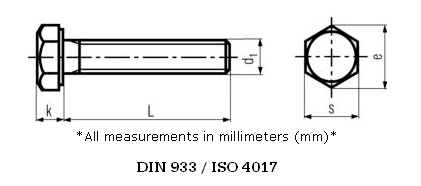

 Stainless Steel Hex Head Screws Bolts
Set Screws DIN 933
| d1 |
k |
e |
s |
| M3 |
2 |
6.01 |
5.5 |
| M4 |
2.8 |
7.66 |
7 |
| M5 |
3.5 |
8.79 |
8 |
| M6 |
4 |
11.05 |
10 |
| M8 |
5.3 |
14.38 |
13 |
| M10 |
6.4 |
18.9 |
17 |
| M12 |
7.5 |
21.1 |
19 |
| M14 |
8.8 |
24.49 |
22 |
| M16 |
10 |
26.75 |
24 |
| M18 |
11.5 |
30.14 |
27 |
| M20 |
12.5 |
33.53 |
30 |
| M22 |
14 |
35.72 |
32 |
| M24 |
15 |
39.98 |
36 |
| M27 |
17 |
45.2 |
41 |
| M30 |
18.7 |
50.85 |
46 |
| M33 |
21 |
55.37 |
50 |
| M36 |
22.5 |
60.79 |
55 |
| M42 |
26 |
71.3 |
65 |
| M48 |
30 |
82.6 |
75 |
|
Please contact us for all your needs of Stainless Steel Hex Head Screws Bolts Set Screws DIN 933 at best prices from india. We are the biggest indian manufacturers exporters of Stainless Steel Hex Head Screws Bolts Set Screws DIN 933
|
