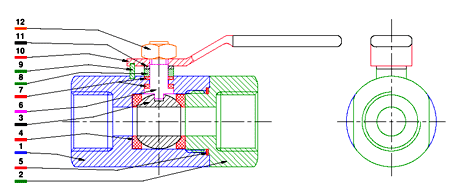

Low Pressure Ball Valve |
NO |
DESCRIPTION |
QTY |
MATERIAL |
1 |
BODY |
1 |
SS 316 |
2 |
END CONNECTOR |
1 |
SS 316 |
3 |
BALL |
1 |
SS 316 |
4 |
STEM |
1 |
SS 316 |
5 |
BALL SEAT |
2 |
PTFE |
6 |
CONNECTOR SEAL |
1 |
PTFE |
7 |
STEM SEAL |
2 |
PTFE |
8 |
STEM WASHER |
1 |
SS 316 |
9 |
LOCK PIN |
1 |
SS 304 |
10 |
HANDLE |
1 |
SS 304 |
11 |
SPRING WASHER |
1 |
SS 304 |
12 |
LOCK NUT |
1 |
SS 304 |
SPECIFICATIONS : |
Size |
1/4" to 1" |
End ports |
BSP, NPT, BSPT, Flange End, ODT |
Max.Std. Pressure |
3000 Psi (207 Bar) |
Temperature Rating |
PTFE 450° F (232°C)
Grafoil 700° F (371° C) |
Material |
SS 316, SS 304, C.S.,Hastelloy, Monel |
Ball Seat |
PTFE, Delrin |
Panel mount option |
All valves are 100% Factory tested prior to shipment. |
|
