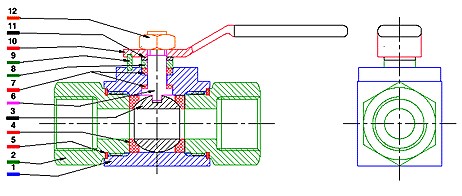

| High Pressure Ball Valve |
| NO |
DESCRIPTION |
QTY |
MATERIAL |
| 1 |
BODY |
1 |
SS 316 |
| 2 |
END CONNECTOR |
2 |
SS 316 |
| 3 |
BALL |
1 |
SS 316 |
| 4 |
STEM |
1 |
SS 316 |
| 5 |
BALL SEAT |
2 |
PTFE |
| 6 |
CONNECTOR SEAL |
2 |
PTFE |
| 7 |
STEM SEAL |
2 |
PTFE |
| 8 |
STEM WASHER |
1 |
SS 316 |
| 9 |
LOCK PIN |
1 |
SS 304 |
| 10 |
HANDLE |
1 |
SS 304 |
| 11 |
SPRING WASHER |
1 |
SS 304 |
| 12 |
LOCK NUT |
1 |
SS 304 |
| SPECIFICATIONS : |
| Size |
1/4" to 1" |
| End ports |
BSP, NPT, BSPT, Flange End, ODT |
| Max. Std. Pressure |
6000 Psi (413 Bar) |
| Temperature Rating |
PTFE 450° F (232°C)
Grafoil 700° F (371° C) |
| Material |
SS 316, SS 304, C.S., Hastelloy, Monel |
| Ball Seat |
PTFE, Delrin |
| Panel mount option |
All valves are 100%
Factory tested prior to shipment. |
|
