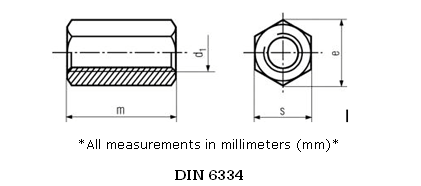

 Stainless Steel Hexagonal Coupling
Nuts DIN 6334
| d1 |
m |
e |
s |
| M6 |
18 |
11.05 |
10 |
| M8 |
24 |
14.38 |
13 |
| M10 |
30 |
18.9 |
17 |
| M12 |
36 |
21.1 |
19 |
| M16 |
48 |
26.75 |
24 |
| M20 |
60 |
33.53 |
30 |
| M24 |
72 |
41.6 |
36 |
|
Please contact us for all your needs of Stainless Steel Hexagonal Coupling Nuts DIN 6334 at best prices from india. We are the biggest indian manufacturers exporters of Stainless Steel Hexagonal Coupling Nuts DIN 6334
|
