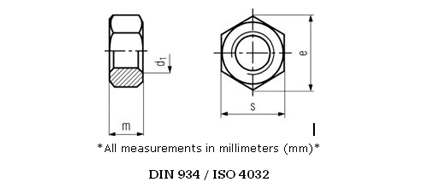

Stainless Steel Hex Nuts DIN 934

Stainless Steel Hex Nuts DIN 934

d₁	s	e	m
M1	2.5	2.72	0.8
M1.2	3	3.29	1
M1.4	3	3.29	1.2
M1.6	3.2	3.48	1.3
M1.7	3.5	3.82	1.4
M2	4	4.32	1.6
M2.3	4.5	4.95	1.8
M2.5	5	5.45	2
M2.6	5	5.51	2
M3	5.5	6.01	2.4
M3.5	6	6.01	2.8
M4	7	7.66	3.2
M5	8	8.76	4
M6	10	11.05	5
M7	11	12.12	5.5
M8	13	14.38	6.5
M10	17	18.9	8
M12	19	21.1	10
M14	22	24.49	11
M16	24	26.75	13
M18	27	29.56	15
M20	30	32.95	16
M22	32	35.03	18
M24	36	39.55	19
M27	41	45.2	22
M30	46	50.85	24
M33	50	55.37	26
M36	55	60.79	29
M39	60	66.44	31
M42	65	71.3	34
M45	70	76.95	36
M48	75	82.6	38
M52	80	88.25	42
M56	85	95.07	45
M60	90	100.72	48
M64	95	106.37	51
M68	100	112.02	54
M72	105	117.67	58
M76	110	123.32	61
M80	115	128.97	64
M85	120	133.11	68
M90	130	145.77	72
M95	135	151.42	76
M100	145	162.72	80
M105	150	16837	84
M110	155	174.02	88
M115	165	185.32	92
M120	170	190.97	96
M125	180	202.27	100
M130	185	207.75	104
M135	190	213.40	108
M140	200	224.70	112
M145	210	236	116
M150	210	236	120

Related words : Flange Nuts, Machine Nuts, Hex Bolt, Stainless Bolts, Jam Nuts, Jam Nut, Nylon Lock Nuts, Stainless Fasteners, Slotted Hex Nuts, Stover Lock Nuts, Nuts Bolts, Hex Lock Nut, Stainless Hex Nuts, Nylon Nuts, Hex Nuts, Weld Nuts, Hex Nut, Weld Nut, Slotted Nut, Steel Hex Nuts

Please contact us for all your needs of

Stainless Steel Hex Nuts DIN 934

at best prices from india. We are the biggest indian manufacturers exporters of

Stainless Steel Hex Nuts DIN 934
