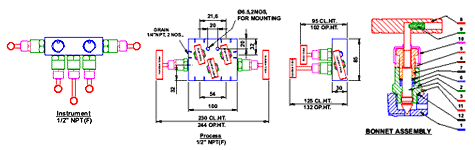

              Manifolds 5 Valves Straight Type
Manifolds 5 Valves Straight Type
Straight Type
NO DESCRIPTION QTY MATERIAL
1 BODY 1 SS 316
2 BONNET 1 SS 316
3 STEM 1 SS 316
4 BONNET PUSHER 1 SS 316
5 LOCK NUT 1 SS 316
6 PACKING 1 TEFLON
7 WASHER 1 SS 316
8 HANDLE 1 SS 304
9 GRUB SCREW 1 SS
10 DUST CAP 1 PLASTIC
11 LOCKING PIN 1 SS 304
12 BONNET SEAL 1 TEFLON

FEATURES :
5 VALVE MANIFOLD (STRAIGHT TYPE)
  • 5 valve manifolds are designed for remote or separate mounting. Connecting from process side 1/2" NPT(F) and Instrument side 1/2" NPT(F) Connecting system impulse lines and transmitters, having simple five valves configuration which allows for easy two block or Isolate, two, one Bleed or Vent valve calibration of a static pressure transmitter or gauge.
  • Bleed/vent connection with s.s. plug will be provided on request.
  • Approximate weight : xxx Kg (xxx Lbs.).
  • Heat code traceability
BONNET ASSEMBLY
  • Screwed bonnet design.
  • Bonnet-back seated blow out proof. - Spindle - Ground and thread rolled.
  • Spindle tip-Non rotating tip shut off type - stellited, Regulating-stellited and soft seated.
  • Bonnet pusher - silver plated for anti galling freezing for increased stem cycle life
  • Dust cap protects stem threads from externals contamination.
  • Leak tight seal with low operating torque.

Gas Valves, Diaphragm Valves, High Pressure Valves, Control Valves, Pneumatic Valves, Solenoid Valves, Pneumatics Valves, Asco Valves, Pneumatic Flow Control Valve, Pressure Valves, Motorized Valves, Needle Valves, Solenoid Gas Valves, Double Block And Bleed Valves, 3 Way Valves, Actuated Valve, Honeywell Gas Valves, Pneumatic Control Valves, Steam Control Valve, Samson Valve Related words : Gas Valves, Diaphragm Valves, High Pressure Valves, Control Valves, Pneumatic Valves, Solenoid Valves, Pneumatics Valves, Asco Valves, Pneumatic Flow Control Valve, Pressure Valves, Motorized Valves, Needle Valves, Solenoid Gas Valves, Double Block And Bleed Valves, 3 Way Valves, Actuated Valve, Honeywell Gas Valves, Pneumatic Control Valves, Steam Control Valve, Samson Valve
Please contact us for all your needs of

Manifolds 5 Valves Straight Type

at best prices from india. We are the biggest indian manufacturers exporters of

Manifolds 5 Valves Straight Type
