2 valve manifolds are designed for remote or separate mounting. Connecting from process side 1/2" NPT(F) and Instrument side 1/2" NPT(F) Connecting system impulse lines and transmitters, having simple two valves configuration which allows for easy block or Isolate, Bleed or Vent valve calibration of a static pressure transmitter or gauge.
Bleed/vent connection with s.s. plug will be provided on request.
Approximate weight : 0.95 Kg (2.1 Lbs.).
Heat code traceability
BONNET ASSEMBLY
Screwed bonnet design.
Bonnet-back seated blow out proof.
Spindle-Ground and thread rolled.
Spindle tip-Non rotating tip shut off type - stellited,Regulating-stellited and soft seated.
Bonnet pusher - silver plated for anti galling freezing for increased stem cycle life.
Dust cap protects stem threads from externals contamination.
Leak tight seal with low operating torque.
TECHNICAL SPECFICATIONS
Size :
1/4", 1/2"
End connection :
NPT,BSPT,Socket weld.
Working Pressure :
6000 Psi (413 Bar)
Temperature Rating :
PTFE 450 Deg. F (232 Deg.C) Grafoil 700 Deg. F(371 Deg. C)
Material of construction :
SS 316, SS 304, Monel,C.S.
Optional Sour Gas service valves are available confirming to NACE Std. MR -
01 - 75
Stem packing :
PTFE, Grafoil.
Orifice :
Dia. 4.0
All valves are 100% Factory tested prior to shipment.
APPLICATIONS
Refineries,liquid patroleum gas processing plant,petro-chemical plants, systems difficult to shur off due to solid contents dust, rust, dirt etc.
MANIFOLDS SELECTION INFORMATION DATA
Pressure & 2500
TESTING
Pneumatic Seat test is performed at 1/4 of working pressure.
Hydrostatic shell test is performed at 1.5 times the working pressure.
Optional test are available upon request.
LUBRICATIONS
Dye Molly Sulphide.
Please contact us for all your needs of

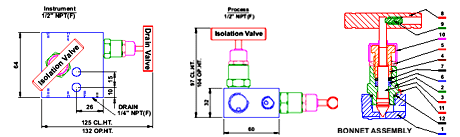

Manifolds 2 Valves Straight Type
